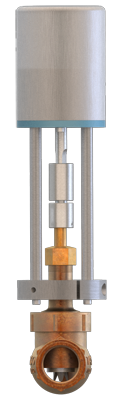

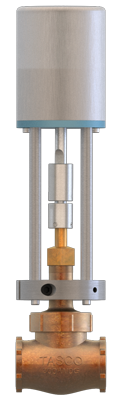

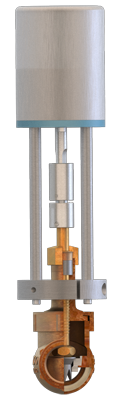

Combination Valve and Flow Control Instrument Micrometer Dial and Pointer Valve can be set to within one hundredth of a turn of the handwheel Manual operation with a straight line flow characteristic Any desired setting can be instantly duplicated

Boilers can suffer from embrittlement, scale formation, carry-over, and corrosion due to solids in the makeup water concentrate. Concentrated solids cause extremely high maintenance resulting in:

• Reduction of heat transfer (causes tube burns)
• Corrosion of boiler and piping
• Dirty steam which damages turbines, traps, products, etc.
• Metal failure

Insures proportional flow throughout entire lift of stem Separate shut-off seating surface eliminates using a 2nd valve for shut-off purposes Insures uniform quality by closer control of temperature and flow Saves steam and fuel on process work and saves money by reducing maintenance

• Sizes ¼" - 2"
• Pressure rating 150#, 200#, and 300# ANSI
• Body type - Angle or globe
• Material - Bronze with SS 500 Brinell seat and disc
• Disc Types - 4V, 2V, and standard cone or plug
